The Escorts Hydra 15 is a top-tier crane engineered for superior performance and reliability in construction and industrial sectors. With its high lifting capacity and precise control, the Hydra 15 features advanced hydraulic systems and a powerful engine to ensure optimal performance. Its ergonomic design and comprehensive safety features make it a trusted choice for operators, enhancing efficiency and safety in various material handling tasks.
Engine
Escorts Kubota E4.391NA, CEV Stage V (with ECU control), 4 cylinder, water cooled diesel engine.
Axle and Transmission
Heavy duty straight axle with constant mesh transmission gear box (8F & 2R).
Better Safety
Overload Audio Warning System, Safety Brakes on Hoist, Cylinder Guards for Protection and more.
Brakes
All Wheel Pneumatic Brakes for superior braking response.

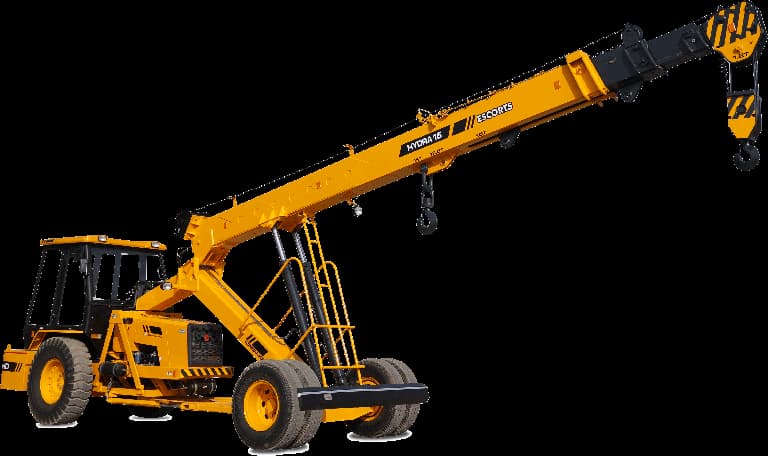

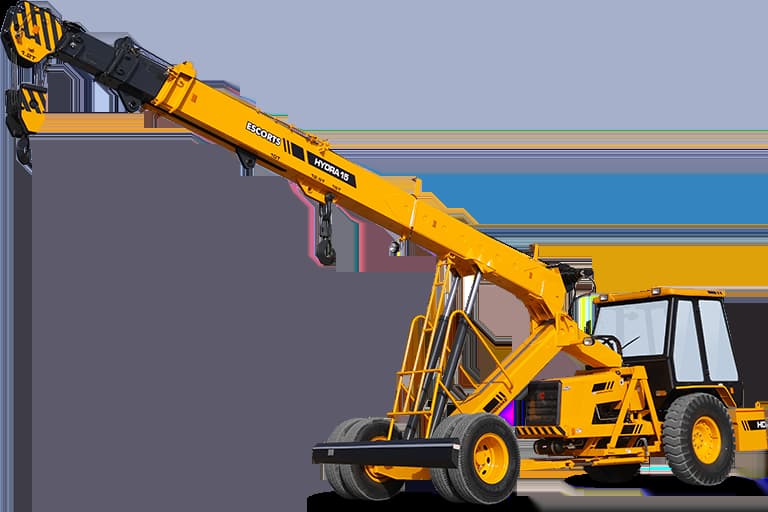

HYDRA 15
Engine
37 kW (50 HP)
Tonnage
15 t
Boom Height
9.3 m (27 ft), 11.1 m (36 ft), 12.67 m (42 ft), 14.9 m (50 ft), 19.15 m (65 ft)
Drive
2WD
OTHER SPECIFICATIONS
| Rated Capacity | 15 t @ 1.6 m & 1.2 t @ 12.5 m radius |
| Operating Weight | 12 050 kg |
| Maximum Height | 3 100 mm |
| Maximum Speed | 29 km/h |
| Creep Speed | 1.7 km/h |
| Transmission | 8F + 2R speeds, Constant Mesh gearbox |
| Turning Radius | 7 m |
OTHER HYDRA CRANE MODELS

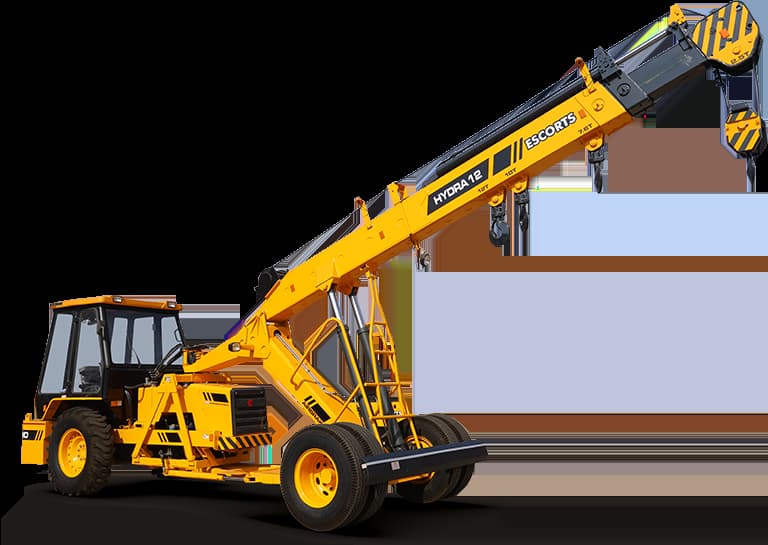

HYDRA 12
Tonnage - 12 t

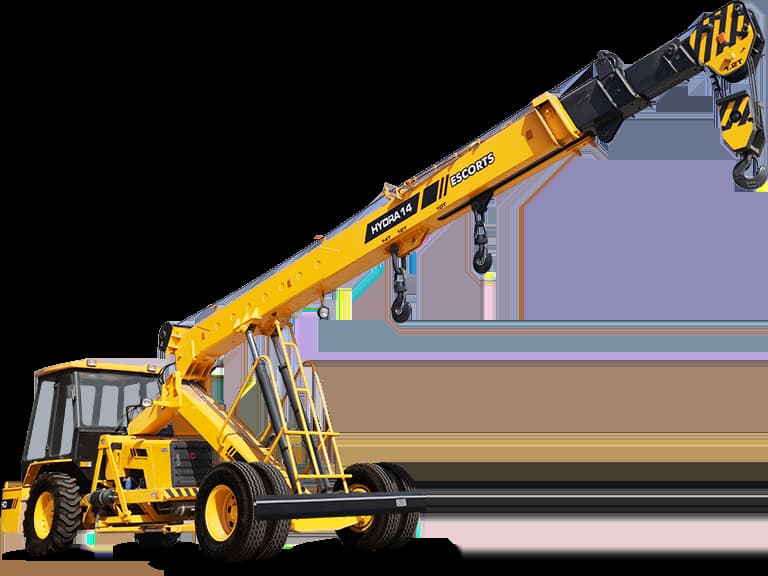

HYDRA 14
Tonnage - 14 t
