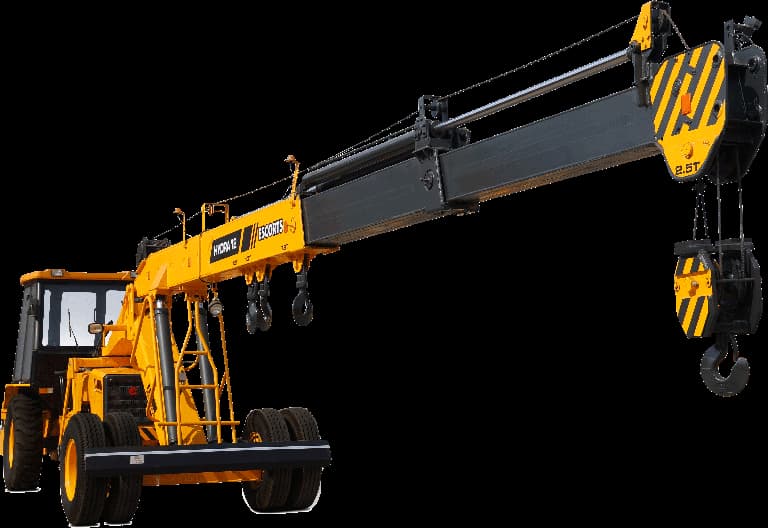

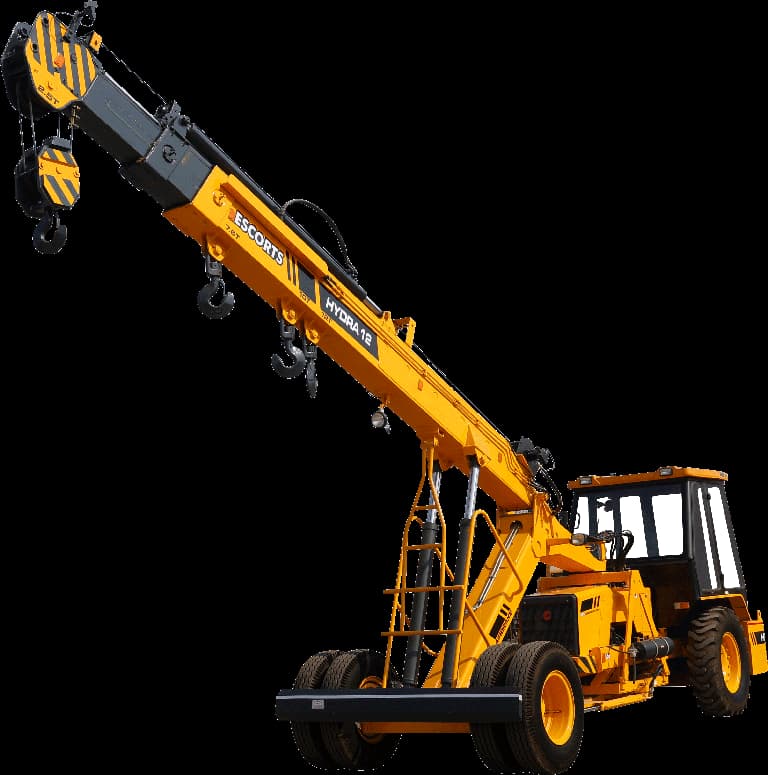

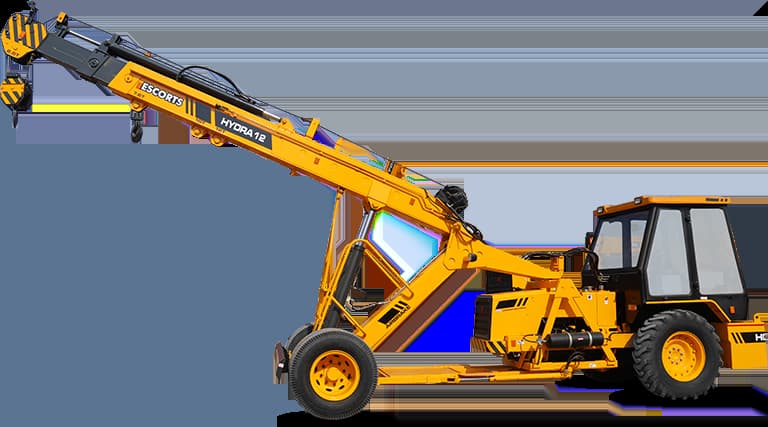

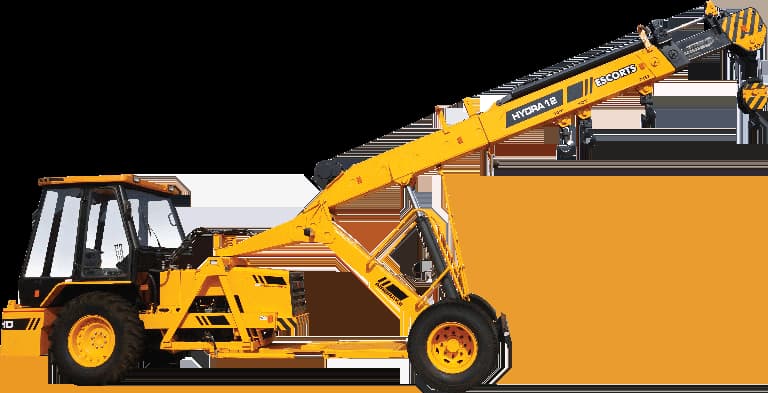

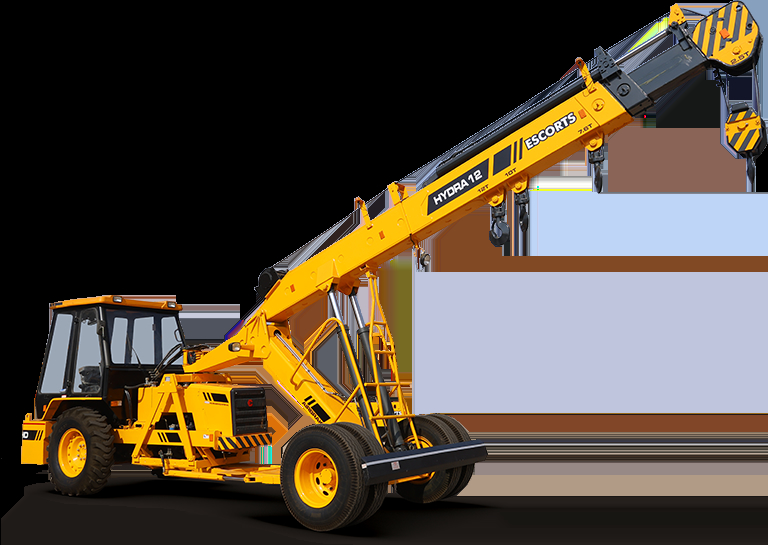

The Escorts Hydra 12 is a robust and reliable crane designed to handle a variety of lifting and material handling tasks in construction and industrial environments. Known for its exceptional stability and precision, the Hydra 12 is equipped with advanced hydraulics and a powerful engine to ensure optimal performance. Its user-friendly controls and safety features make it a preferred choice for operators, providing efficiency and reliability on every job site.
Engine
Escorts Kubota E4.391NA, CEV Stage V (with ECU control), 4 cylinder, water cooled diesel engine.
Transmission
Heavy duty straight axle with constant mesh transmission.
Better safety
Overload Audio Warning System, Safety Brakes on Hoist, Cylinder Guards for Protection and more.
Reliability
Rugged structure for heavy duty application.
HYDRA 12
Engine
37 kW (50 HP)
Tonnage
12 t
Boom Height
9.6 m (27 ft), 11.3 m (36 ft)
Drive
2WD
OTHER SPECIFICATIONS
| Rated Capacity | 12 t @ 1.7 m & 2.3 t @ 8 m radius |
| Operating Weight | 10 300 kg |
| Maximum Height | 3 050 mm |
| Maximum Speed | 29 km/h |
| Creep Speed | 1.7 km/h |
| Transmission | 8F + 2R speeds, Constant Mesh gearbox |
| Turning Radius | 6.3 m |
