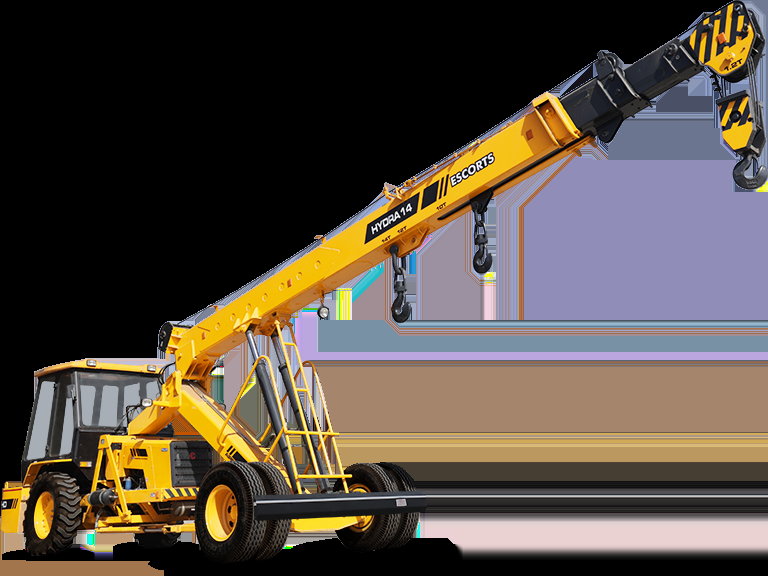

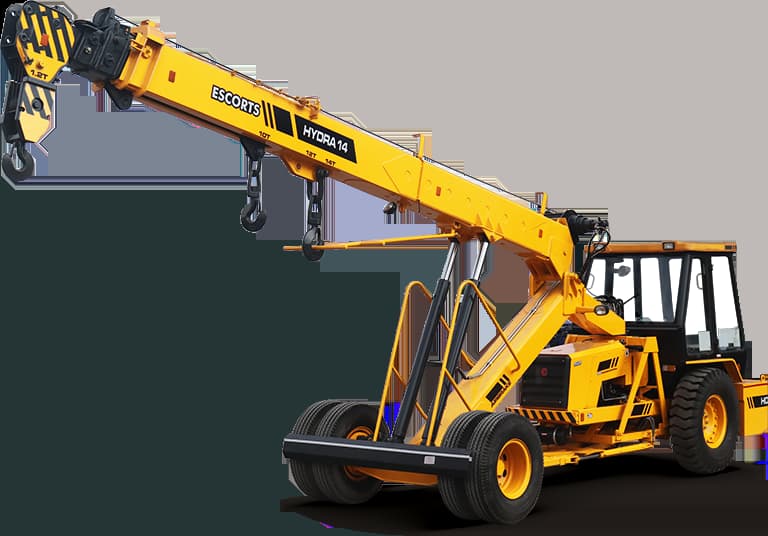

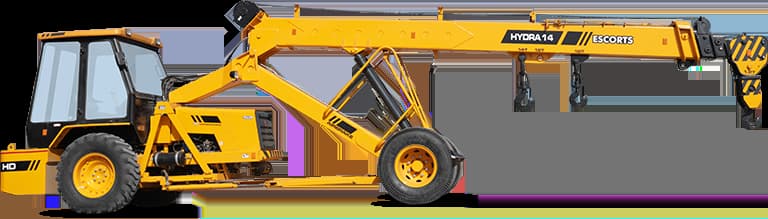

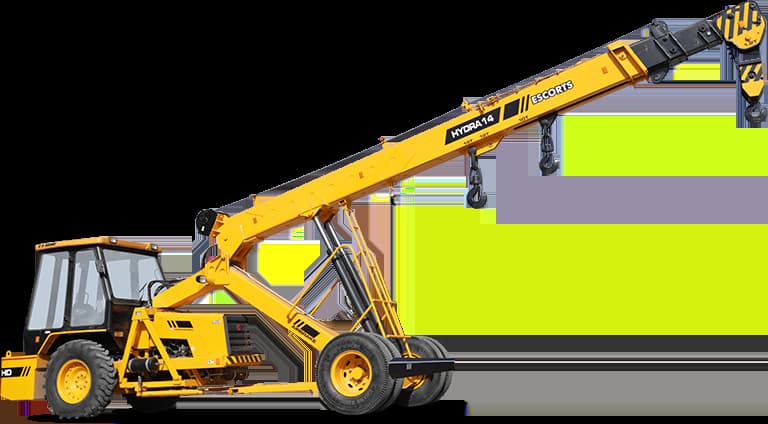

The Escorts Hydra 14 is a state-of-the-art crane designed for superior performance in construction and industrial applications. With its exceptional lifting capacity and precision, the Hydra 14 is equipped with advanced hydraulic systems and a powerful engine to ensure reliable and efficient operations. Its ergonomic design and safety features make it a preferred choice for operators, enhancing productivity and confidence in material handling tasks.
Engine
Escorts Kubota E4.391NA, CEV Stage V (with ECU control), 4 cylinder, water cooled diesel engine.
Axle and Transmission
Heavy duty straight axle with constant mesh transmission gear box (8F & 2R).
BETTER SAFETY
Overload Audio Warning System, Safety Brakes on Hoist, Cylinder Guards for Protection and more.
Brakes
All Wheel Pneumatic Brakes for superior braking response.
HYDRA 14
Engine
37 kW (50 HP)
Tonnage
14 t
Boom Height
11 m (27 ft), 11.1 m (36 ft), 12.98 m (42 ft), 15.1 m (50 ft)
Drive
2WD
OTHER SPECIFICATIONS
| Rated Capacity | 14 t @ 1.6 m & 1.2 t @ 12.4 m radius |
| Operating Weight | 11 750 kg |
| Maximum Height | 3 100 mm |
| Maximum Speed | 29 km/h |
| Creep Speed | 1.7 km/h |
| Transmission | 8F + 2R speeds, Constant Mesh gearbox |
| Turning Radius | 7 m |
