EC 5250 PLUS
TONNAGE
11 T
ENGINE
110 HP
TRANSPORT SPEED
23 km/h
TONNAGE
11 T
ENGINE
110 HP
TRANSPORT SPEED
23 km/h

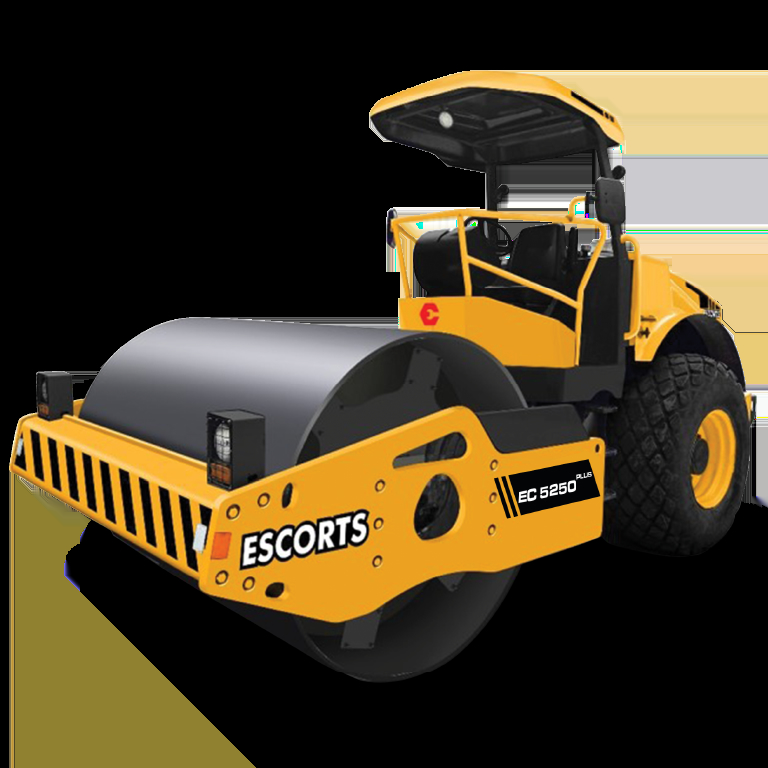

The Escorts EC 5250 Plus Compactor is a high-performance machine designed for superior compaction efficiency in challenging construction environments. Featuring a robust engine and state-of-the-art technology, this compactor delivers exceptional durability and reliability. Its advanced compaction capabilities make it ideal for various applications, ensuring optimal results with minimal effort.
Engine
KOEL 110HP, four cylinder, water cooled, diesel engine. High on power and traction, low fuel consumption and maintenance. Variable RPM through rotary knob provided at dashboard for easy change of engine speed (Variable engine RPM) as per work requirement.
Operating Weight
Machine operating weight 11T and gradebility 34% (without vibration) makes it versatile for all applications.
Speed and Productivity
Highest travelling speed up to 23 Km/hr and vibration frequency 42Hz/ 30 Hz & amplitude of 0.8/1.9 mm for better productivity.
Advanced Features
High compaction force having Static linear load 30.9 Kg/cm and Total applied load 34298 Kg. Drum assembly with Cartridge type eccentric weight, separate case mounting with very less oil quantity and silent operation.
EC 5250 PLUS
Engine
110 HP
Fuel Tank
265 L
Drum Width
2130 mm
Steering Angle
+/- 36°
OTHER SPECIFICATIONS
| Turning Radius | 5500 mm (Outer) / 3370 mm (Inner) |
| Ground Clearence | 435 mm (STD), 435 mm (DD), 485 mm (PD) |
| Drum Diameter | 1523 mm (STD), 1523 mm (DD), 1739 mm (PD) |
| Overall Width | 2290 mm (STD, DD, PD) |
| Travelling Speed | 0-23 km/h (STD), 0-10 km/h (DD), 0-10 km/h (PD) |
| Gradeability | 34% (STD), 45% (DD), 45% (PD) |
