EC 5250
TONNAGE
10 T
ENGINE
110 HP
TRANSPORT SPEED
23 km/h
TONNAGE
10 T
ENGINE
110 HP
TRANSPORT SPEED
23 km/h

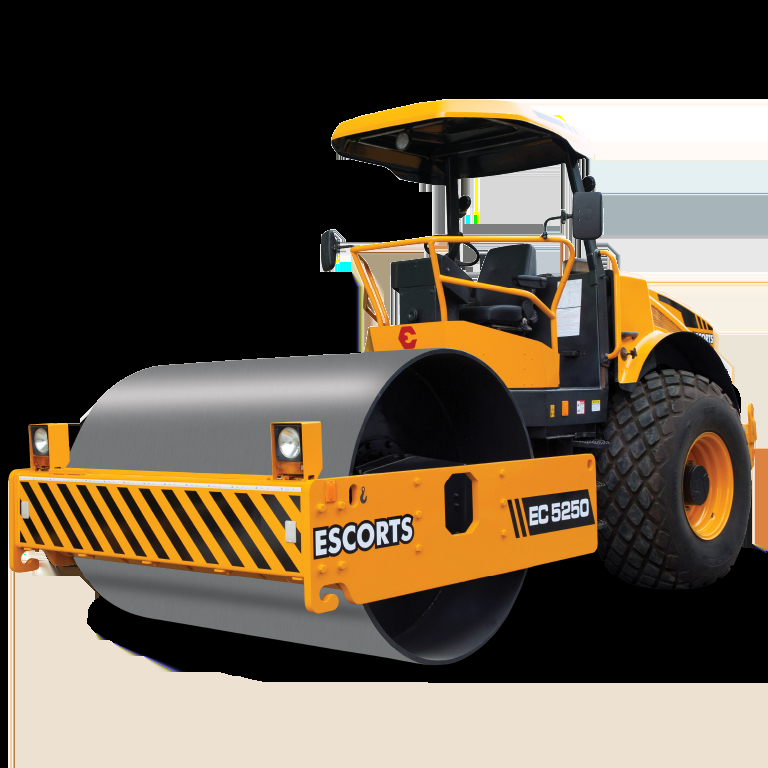

The Escorts EC 5250 Compactor is engineered for maximum compaction efficiency in various construction projects. With its powerful engine and robust build, this machine ensures excellent performance and durability. The EC 5250 is designed to handle tough terrains and provides superior compaction results, enhancing productivity and operational ease.
Engine
KOEL 110HP, four cylinder, water cooled, diesel engine. High on power and traction, low on fuel consumption and maintenance.
Operating Weight
Machine operating weight 9.4T and gradebility 40% (without vibration) makes it versatile for all applications.
Speed and Productivity
Highest travelling speed up to 23 Km/hr and vibration frequency 30 Hz & amplitude of 0.8/1.72 mm for better productivity.
Advanced Features
High compaction force having Static linear load 23.7 Kg/cm and Total applied load 26542 Kg
EC 5250
Engine
110 HP
Fuel Tank
265 L
Drum Width
2130 mm
Steering Angle
+/- 36°
OTHER SPECIFICATIONS
| Turning Radius | 5500 mm (Outer) / 3370 mm (Inner) |
| Ground Clearence | 435 mm (STD), 435 mm (DD), 485 mm (PD) |
| Drum Diameter | 1523 mm (STD), 1523 mm (DD), 1739 mm (PD) |
| Overall Width | 2275 mm (STD, DD, PD) |
| Travelling Speed | 0-23 km/h (STD), 0-10 km/h (DD), 0-10 km/h (PD) |
| Gradeability | 40% (STD), 55% (DD), 55% (PD) |
OTHER SOIL COMPACTOR MODELS

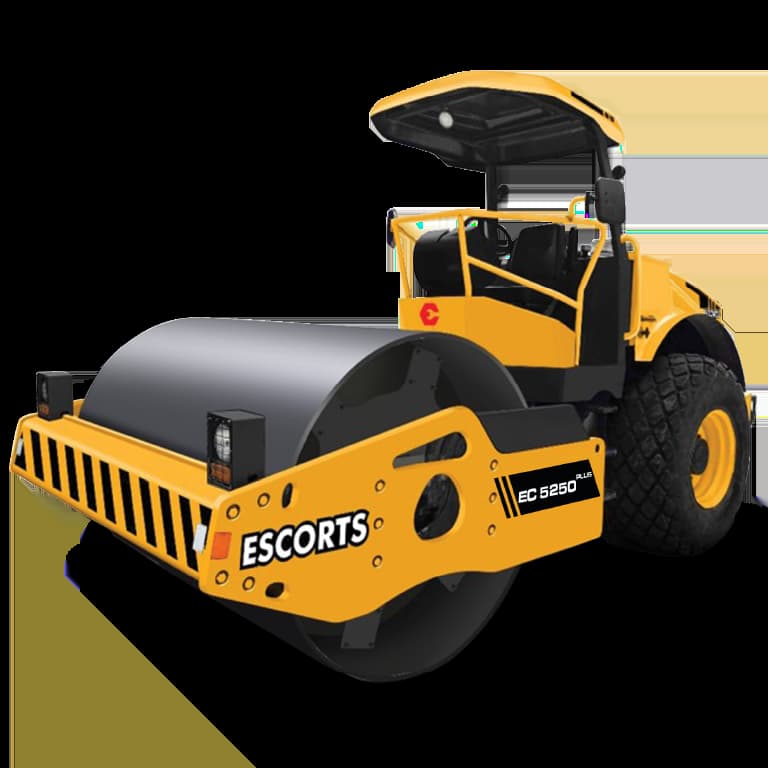

EC 5250 PLUS
Tonnage - 11 T
