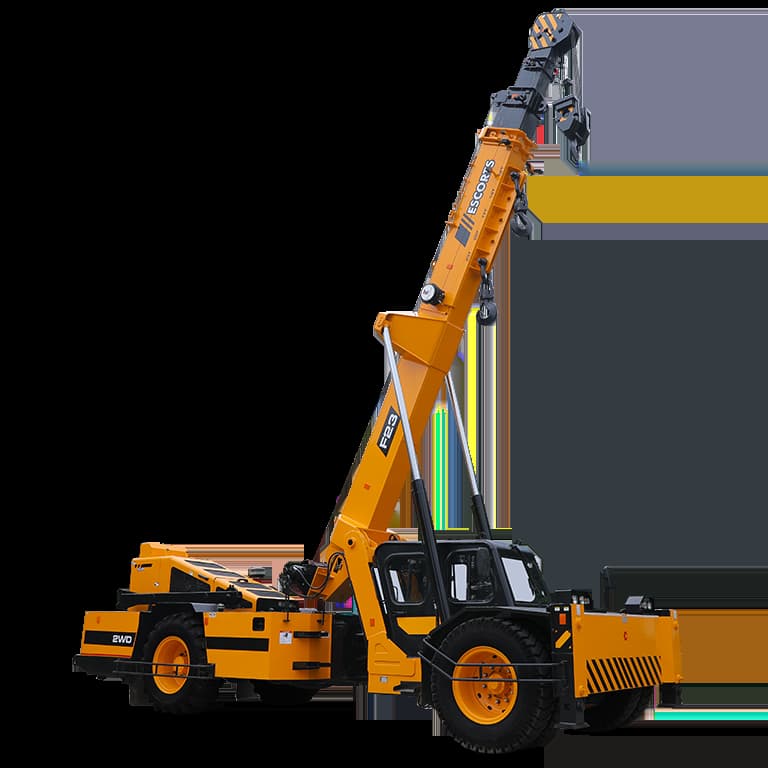

The Escorts F23 crane is a premium lifting machine built to handle the tough requirements of construction and industrial work. With a high-performance engine and advanced hydraulics, it offers strong, reliable performance. Its durable design ensures long-term use, while easy-to-use controls and solid safety features support efficient and confident operation. Perfect for heavy-duty lifting and material handling, the F23 reflects excellent engineering and innovation.

logo atom
logo atom

Engine

102 kW (137 HP) Volvo Eicher make CEV V model E494, Turbo charged, water cooled diesel engine.

logo atom

Lifting Capacity and Axle

23 t Lift capacity with full articulation.

logo atom

Drive and Speed

2 wheel drive crane with max. travelling speed 40 km/h in unladen condition.

logo atom

Boom Height

Max Boom height 19 m (22 m with fly jib).

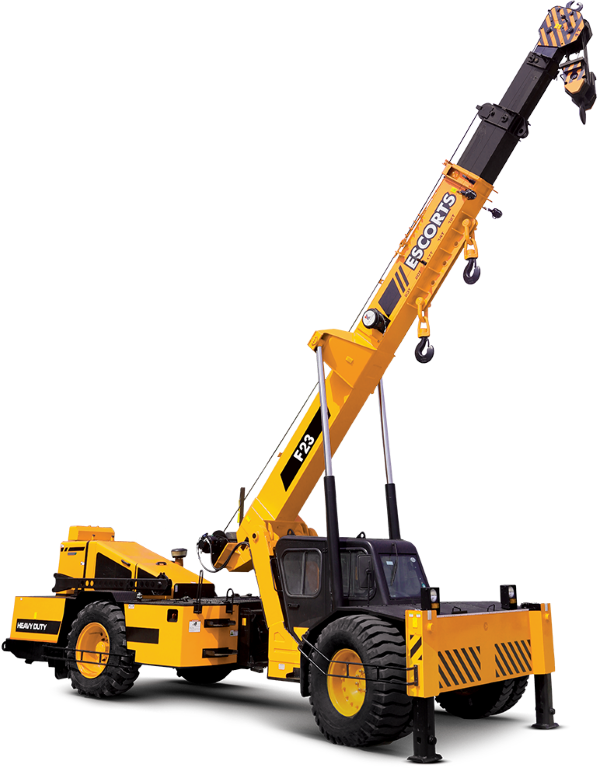

F23(2WD)

specification-atom-26
  • Engine

    102 kW (137 HP)

  • Tonnage

    23 t

  • Boom Height

    19 m (62 ft)

  • Drive

    2WD

OTHER SPECIFICATIONS

Rated Capacity23 t @ 1.5 m & 0.9 t @ 16.6 m radius
Operating Weight18 870 kg
Maximum Height3 100 mm
Creep Speed1.3 km/h
Transmission12F + 2R VECV Synchromesh Gearbox
Turning Radius8.5 m

OTHER HIGH END CRANE MODELS

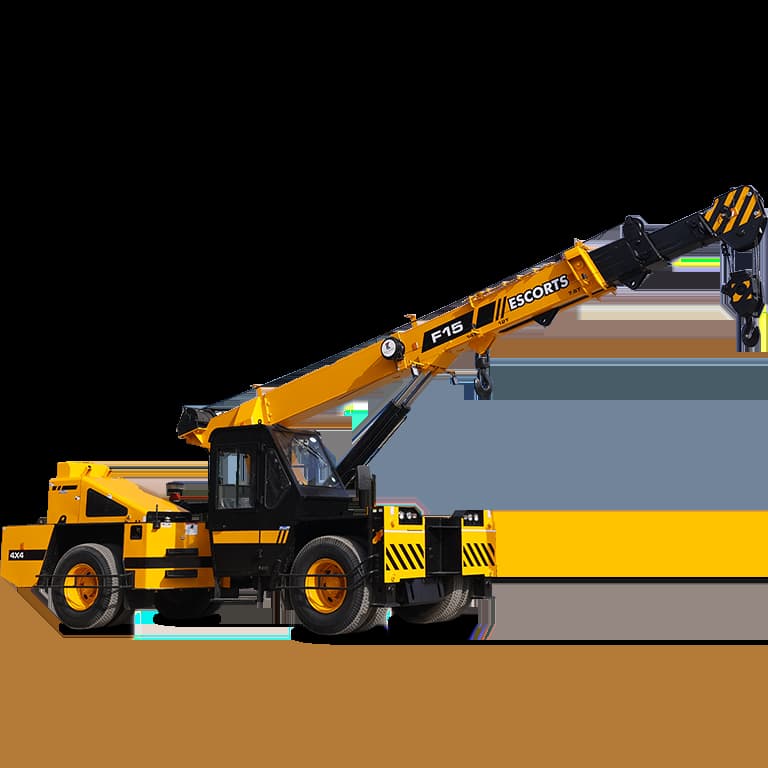

F15

Tonnage - 14 t, 15 t

pro titel

F15-FIGHTER

Tonnage - 15 t

pro titel

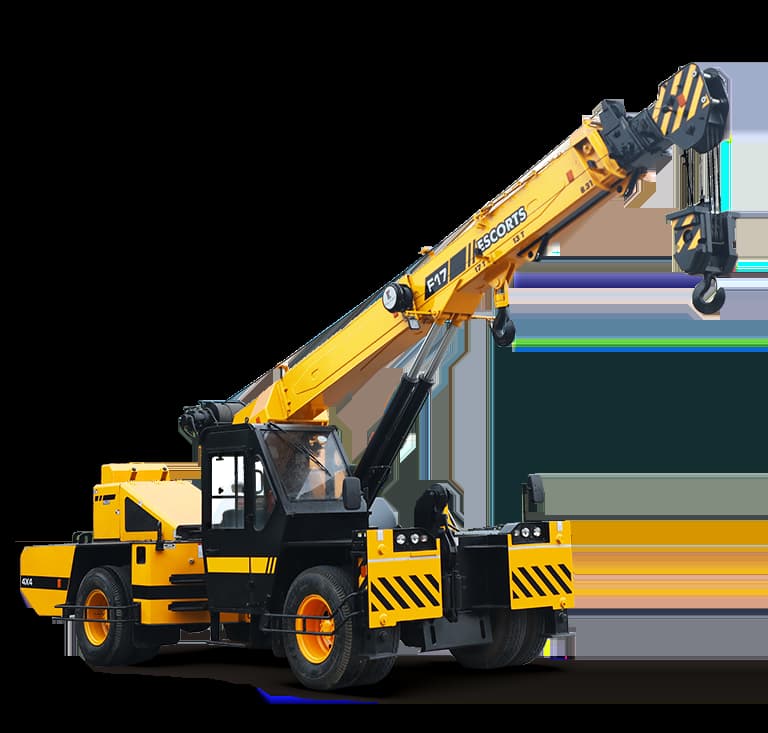

F17

Tonnage - 17 t

pro titel

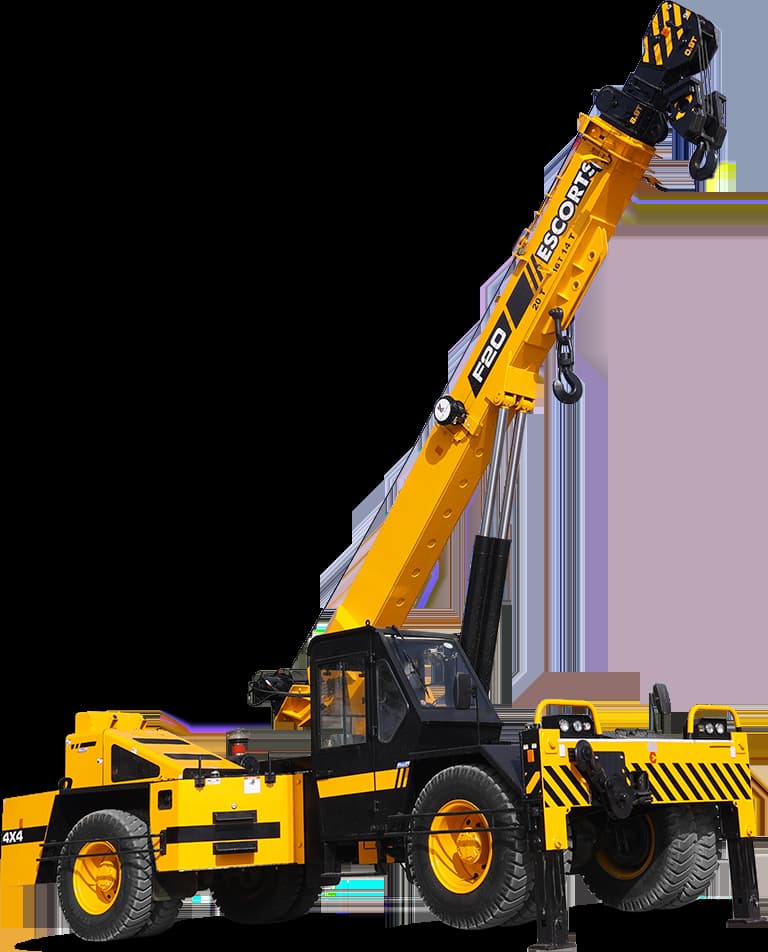

F20
