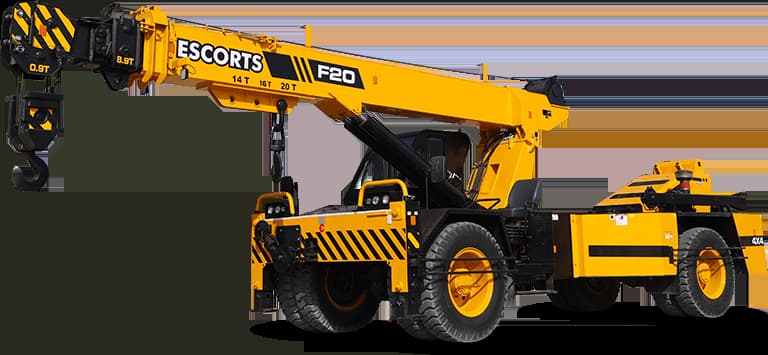

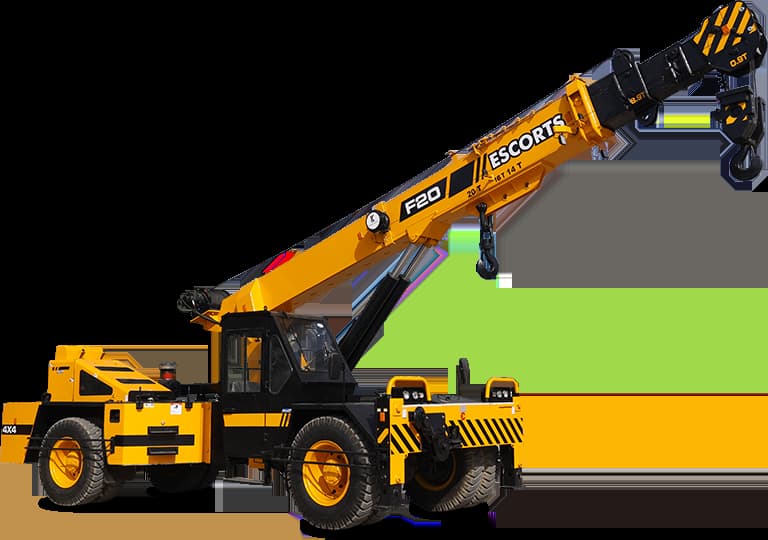

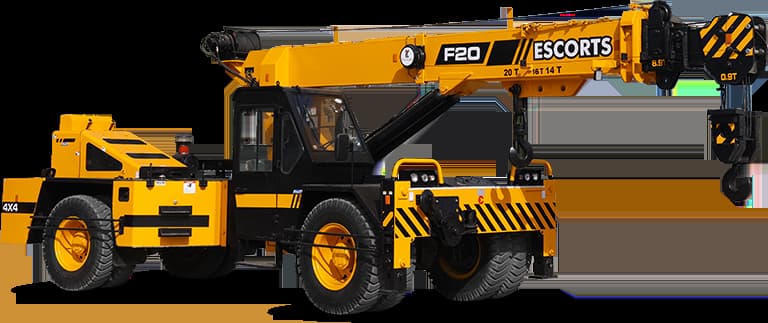

The Escorts F20 crane is a top-tier lifting solution built to meet the heavy demands of construction and industrial work. It comes with a powerful engine and advanced hydraulic systems that ensure excellent performance and reliability. Its strong build offers long-lasting durability, while easy-to-use controls and solid safety features help operators work efficiently and confidently. Ideal for heavy-duty lifting and material handling, the F20 reflects high-quality engineering and innovation.

DOWNLOAD BROCHURE
logo atom
logo atom

Engine

Engine - 74 kW (101 HP) Volvo Eicher make CEV Stage V, model E494, Turbo charged, water cooled diesel engine.

logo atom

Lifting Capacity and Axle

20 t Lift capacity with full articulation. Heavy Duty TATA make axles, 37 t capacity hub reduction axle for heavy load application.

logo atom

Drive

4 wheel drive crane with max. traveling speed of 40 km/h in unladen condition.

logo atom

Boom

Max boom height 19.5 m (21.8 m with fly jib).

F20

specification-atom-26
  • Engine

    74 kW (101 HP)

  • Tonnage

    20 t

  • Boom Height

    19.5 m (64 ft)

  • Drive

    4WD

OTHER SPECIFICATIONS

Rated Capacity20 t @ 1.5 m & 0.9 t @ 16 m radius
Operating Weight19 475 kg
Maximum Height3 300 mm
Creep Speed1.3 km/h
Transmission10F + 2R speed with Synchromesh Transmission Gear and Auxiliary Gear Box
Turning Radius8.25 m

OTHER HIGH END CRANE MODELS

F15

Tonnage - 14 t, 15 t

pro titel

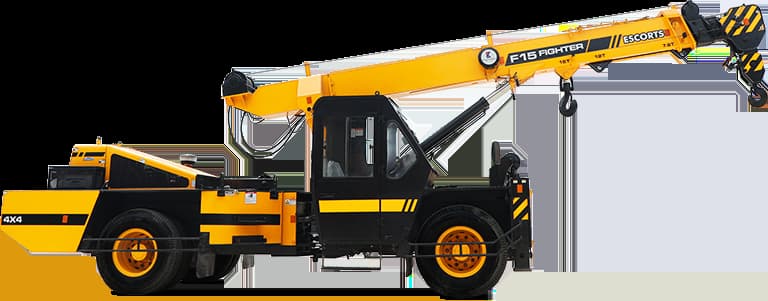

F15-FIGHTER

Tonnage - 15 t

pro titel

F17

Tonnage - 17 t

pro titel

F23

Tonnage - 23 t

pro titel

F23 2WD

Tonnage - 23 t

pro titel
