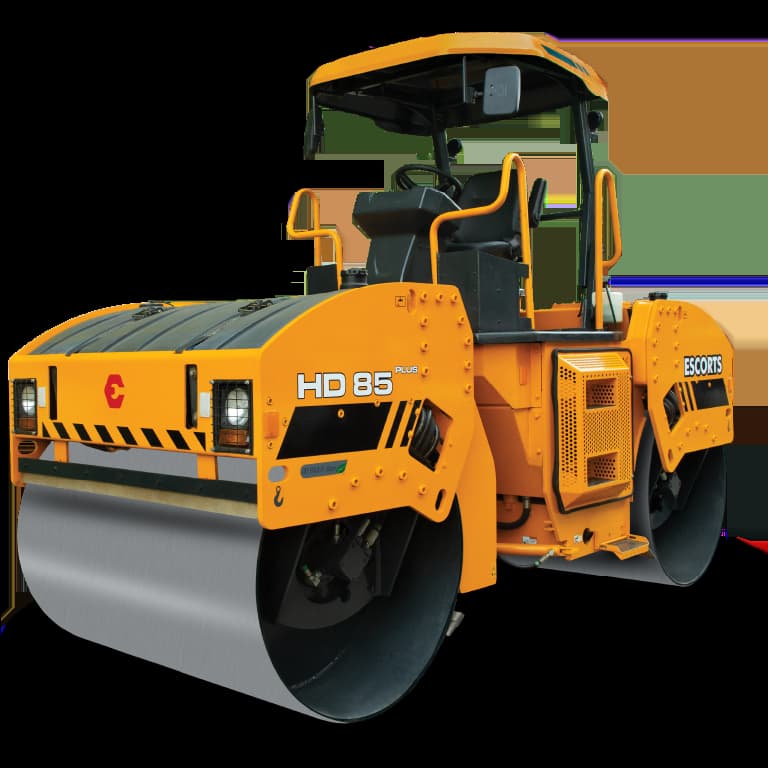

HD 85 PLUS
TONNAGE
9 T
ENGINE
75 HP
TRANSPORT SPEED
13.8 km/h
TONNAGE
9 T
ENGINE
75 HP
TRANSPORT SPEED
13.8 km/h
The Escorts HD 85 Plus Compactor is designed for superior compaction efficiency and durability, ideal for road construction and infrastructure projects. Featuring a robust build and advanced technology, this compactor ensures optimal performance and reliability. With user-friendly controls and a powerful engine, the HD 85 Plus provides excellent compaction results while maintaining operator comfort.
Operating Weight
Machine operating weight 9 T, Gradebility 36% (without vibration)
Compacting Force
High compaction force having Static linear load 27.7 Kg/cm and Total applied load 22372 Kg.
Speed and Productivity
Highest travelling speed up to 13.8 Km/hr and vibration frequency 33/50 Hz & amplitude of 0.4/1.00 mm for better productivity.
Advanced Features
High kerb clearnce for effective compaction along culvers and high ground clearance. Largest Water Tank 800 liters for uninterrupted long operation.
HD 85 PLUS
Engine
75 HP
Fuel Tank
160 L
Drum Width
1680 mm
Steering Angle
+/- 30°
OTHER SPECIFICATIONS
| Turning Radius | 6475 mm (Outer) / 4750 mm (Inner) |
| Ground Clearence | 290 mm |
| Drum Diameter | 1200 mm |
| Overall Width | 1780 mm |
| Working Speed | 0 - 8.5 km/h |
| Gradeability | 30% with vibration, 36% without vibration |
OTHER TANDEM COMPACTOR MODELS

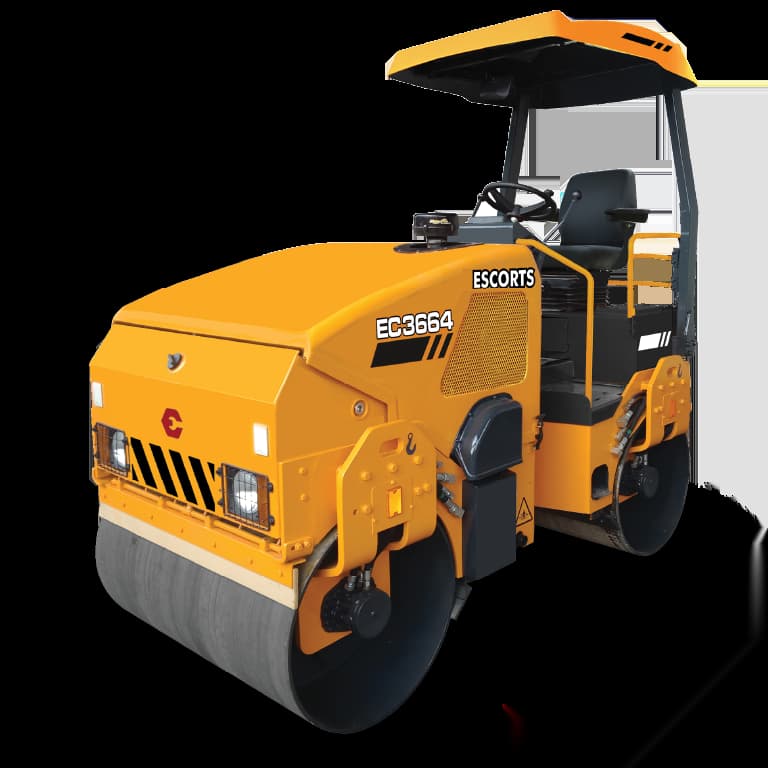

EC 3664
Tonnage - 3.3 T
